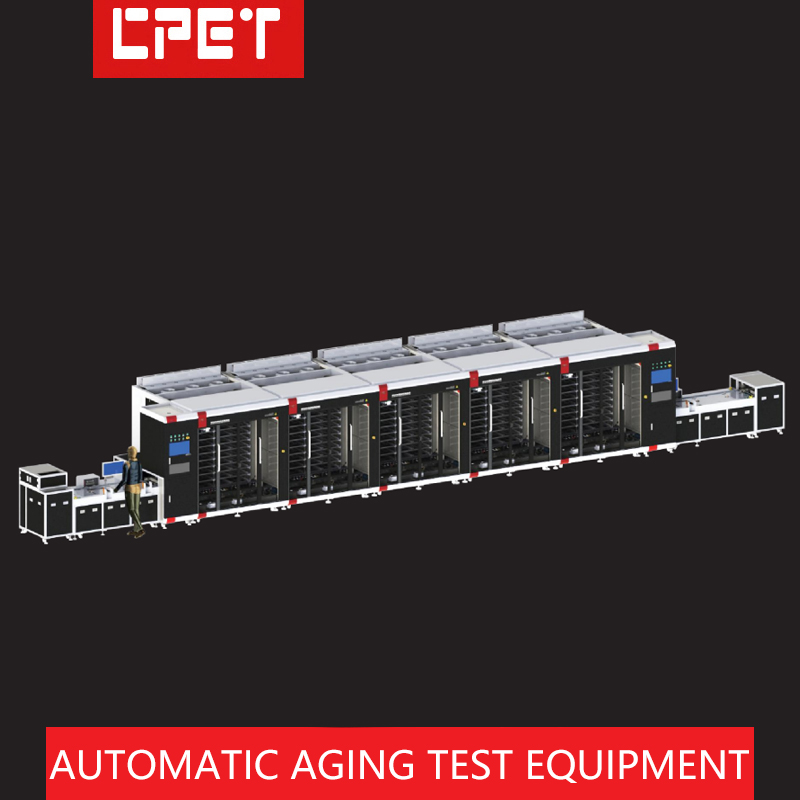

Customizable Burn-In Test Cabinet with 380V Three-Phase Power and RS485 Communication for Inverter Aging Testing

Name: Customizable Burn-In Test Cabinet with 380V Three-Phase Power and RS485 Communication for Inverter Aging Testing
Brand: Shenzhen CPET Electronics Co., Ltd.
Price: 7800.0 USD
Availability: InStock

Price 7800.0 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

Customizable Burn-In Test Cabinet with 380V Three-Phase Power and RS485 Communication for Inverter Aging Testing Specification

Accuracy
0.5% F.S. %

Operating Voltage
220 V AC 10% Volt (V)

Gas Pressure
60 N/m2

Temperature
60 Celsius (oC)

Humidity
20% 90% RH

Mounting Type
Floor standing

Resolution
0.01 V/0.01 A

Test Range
0 2000 W

Max Height
1350 mm

Automation Grade
Automatic

Number of Specimens
Up to 40 units

Interface Type
RS232/USB

Measuring Range
60 Celsius (oC)

Frequency
50 Hz Hertz (HZ)

Display Type
LCD Touch Screen

Weight
400 Kilograms (kg)

Application
Aging and performance test of LED driver power supply

Power Supply
AC 220 V, 50 Hz

Features
Overload protection, data logging, auto shutdown

Product Type
Aging test equipment

Port Size
Standard, customize on request

Classification
burn-in test

Material
cold-reduced sheet

Usage
inverter

Color
black

Response Time
1 Months

Specimen Size
60 Foot (ft)

Capacity
Max 2000W per channel Milliliter (ML)

Machine Weight
400 Kilograms (kg)

Test Speed
Adjustable, up to 50 cycles/min

Test Width
30 Meter (m)

Test Stroke
0 - 300 mm

Control Mode
PLC Touch Screen Control

Cooling Method
Forced air cooling

Enclosure Material
Powder-coated steel

Test Modes
Continuous, cyclic, programmable cycling modes

Alarm Function
Audible and visual alarm for fault and test end

Software Support
PC software for remote monitoring and control

Color
Industrial grey and blue

Power Consumption
< 3 kW

Fixture Type
Adjustable clamps for varying specimen sizes

Data Storage
Yes, internal memory and USB export

Safety Standard Compliance
CE certified, IEC standard compliant

Customizable Burn-In Test Cabinet with 380V Three-Phase Power and RS485 Communication for Inverter Aging Testing Trade Information

Minimum Order Quantity
1 Set

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
192 Sets, Set Per Month

Delivery Time
30 Days

Sample Available
No

Packaging Details
Packed in wooden cases

Certifications
CE,ROHS

About Customizable Burn-In Test Cabinet with 380V Three-Phase Power and RS485 Communication for Inverter Aging Testing

Burn In Test Cabinet Support Customization For DC To AC Bi Directional Inverter

System Features

Applicable to energy storage power, current converter, inverter, regurgitator, transverter, medical power supply and more
Free configuration of self-developed special monitoring software for power Burn-in, with independent intellectual property rights
Use programmable electronic load module to monitor output terminal voltage, current and power parameters
Dedicated monitoring software for Burn-in enjoys free final upgrade service with powerful expansion function
Computer automatically displays product quality with multiple windows for centralized management
Computer stores Burn-in data reports for easy tracing of process parameters

Performance parameters

Trolley size (mm)	L2050W1085H2050mm (size of a single Burn-in cabinet)
Number of trolley layers	5layers, product area depth 400mm, (8 Burn-in positions per layer
Trolley height	220mm
Trolley structure material	thick cold rolled sheet

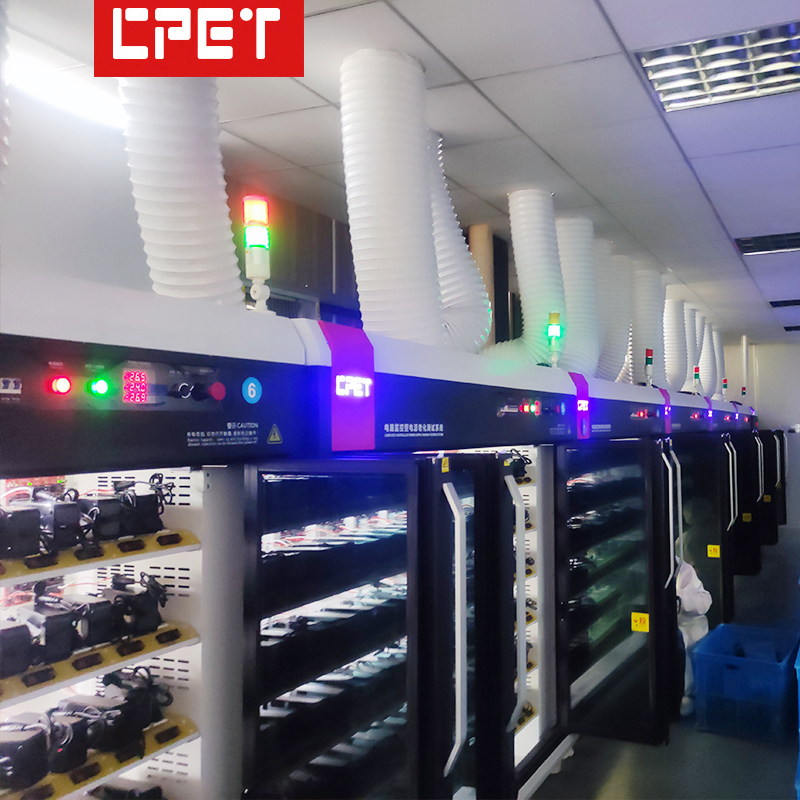

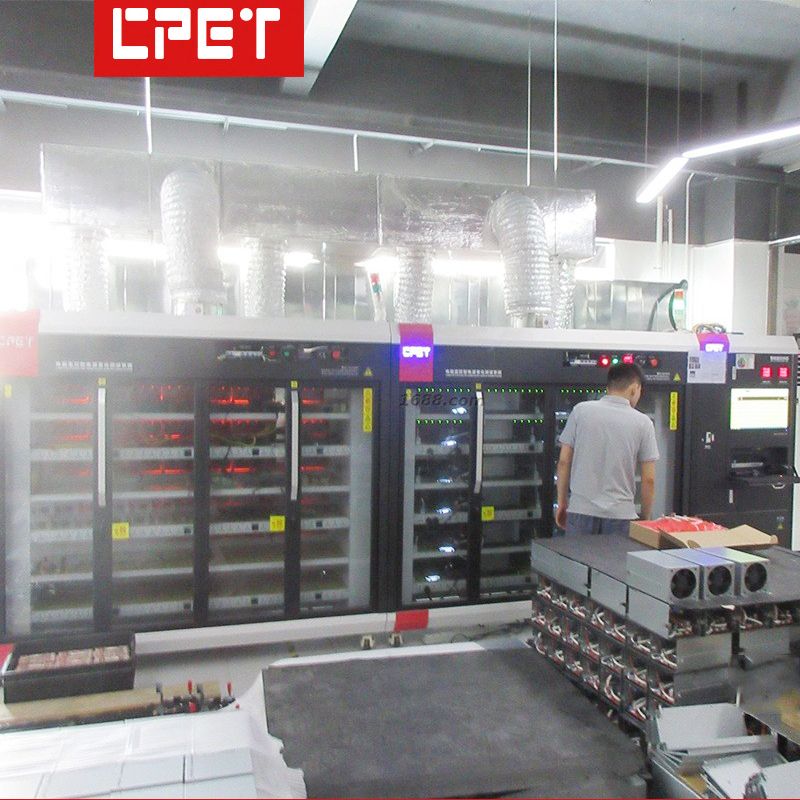

Load area cooling method	Top turbine exhaust fan top row type (easy to control the ambient temperature)
Layer insulation and anti-static method	Epoxy insulation board with heat dissipation holes on the surface

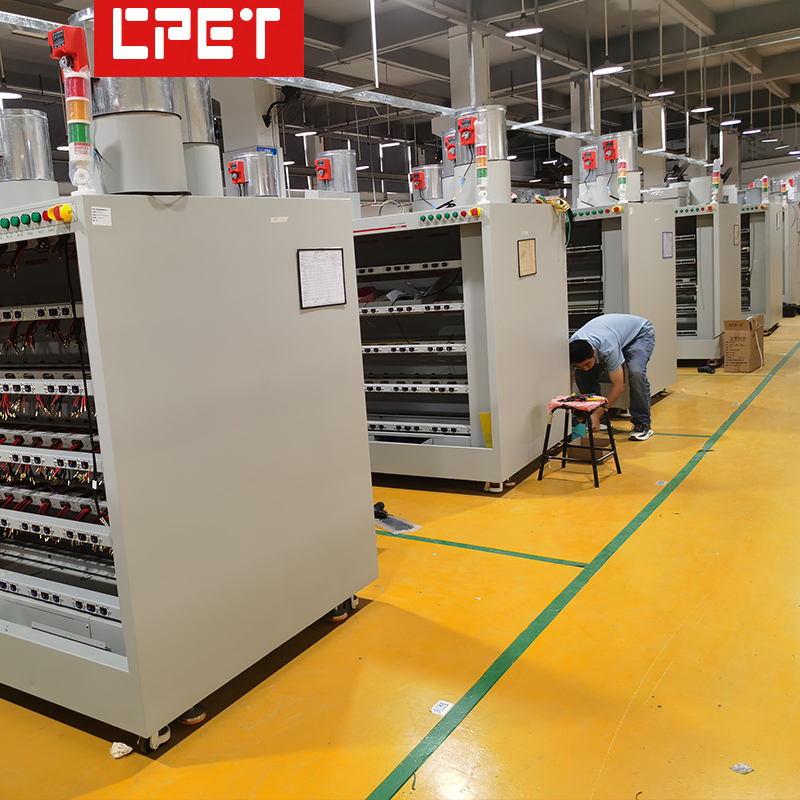

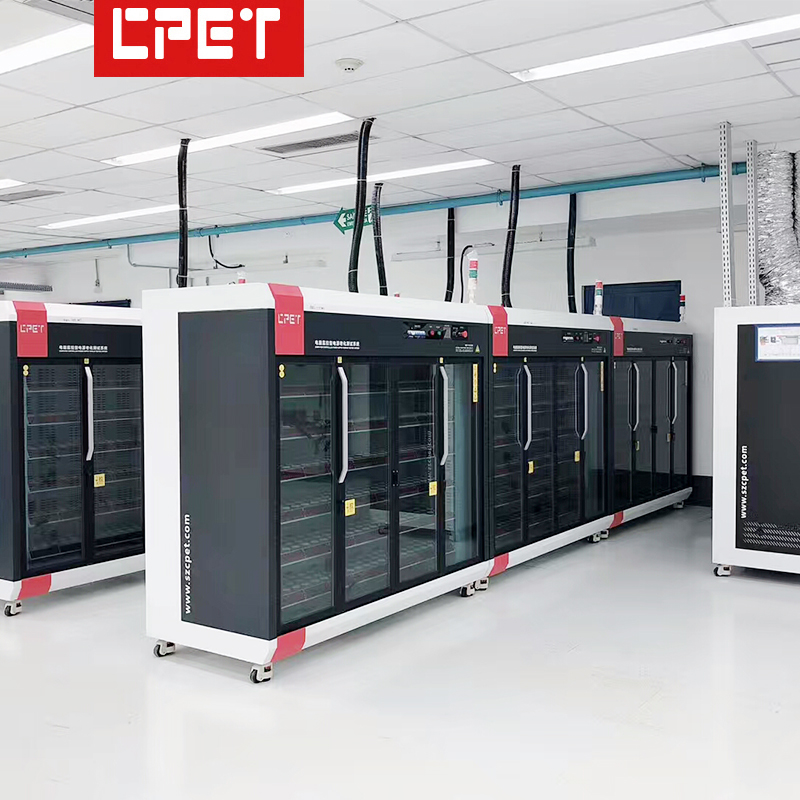

Overall burn-in room structure	Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine
Energy recovery module control mode	RS485 communication mode, upper computer uses RS232 communication mode
Install the energy recovery module model	CP8401(See specification for details)
Number of energy recovery modules installed	There are 8 4CH modules on each floor, and 40 modules need to be installed in the whole burn-in cabinet
Energy recovery module isolation mode	Electronic load module channel adopts photoelectric isolation (communication and power supply isolation)
Energy recovery module design architecture	No relay, long life design scheme (independent intellectual property rights)
Number of burn-in products in the entire cabinet	Burn-in of one cabinet There are 40 inverters with 40 DC inputs (10 to 60V/25A) and AC outputs (85 to 260V/30A/2.4W)
Wiring	Customer specified interface; Input/output port Anderson connector
Panel function keys	Input AC voltage display, start switch, emergency stop switch
Trolley power distribution and control mode	380V three-phase five-wire distribution; Computer monitoring and automatic electric control
Trolley power distribution	A single burn-in cabinet is 2400W*40/0.8512KW, and the measured power efficiency is calculated as 85%
Way to control	The electric control includes manual/automatic switching, which is monitored by the computer in real time when burn-in. The electric control cabinet can extend the automatic switching function of AC voltage
Safety protection	Equipment grounding protection, leakage switch protection, smoke alarm automatic power-off protection, etc.
Suitable for inverter board, DC to AC power supply burn-in
Free configuration of self-developed special monitoring software for power Burn-in, with independent intellectual property rights and no legal risks
Use programmable electronic load module to monitor output terminal voltage, current and power parameters
Dedicated monitoring software for Burn-in enjoys free final upgrade service, powerful expansion function, saving repeated investment in equipment
Burn-in parameters, time setting, ON/OFF sequence editing (test of the product being tested on and off), support for automatic voltage switching, load conversion and other functions can be programmed (Burn-in parameters can be automatically switched in a fixed time period)
The function of automatically turning off the power at the end of the Burn-in of the tested power supply is convenient for unattended
The computer automatically displays the quality of the tested power supply product, and multiple windows in the window are convenient for centralized management, which saves operators and improves production efficiency
The computer can store the Burn-in data report of the tested power supply, the process parameters of the tested power supply are easy to trace; in addition, it has barcode scanning and supports MES system upload
RS232 to RS485 adopts photoelectric isolation converter to improve communication reliability and prevent lightning damage to equipment
Each computer can monitor 18 devices at the same time, (each serial port can connect to 63 slaves, and each computer supports up to 18 serial ports)
The power Burn-in monitoring software has a built-in help file, which is convenient for solving operation questions immediately
