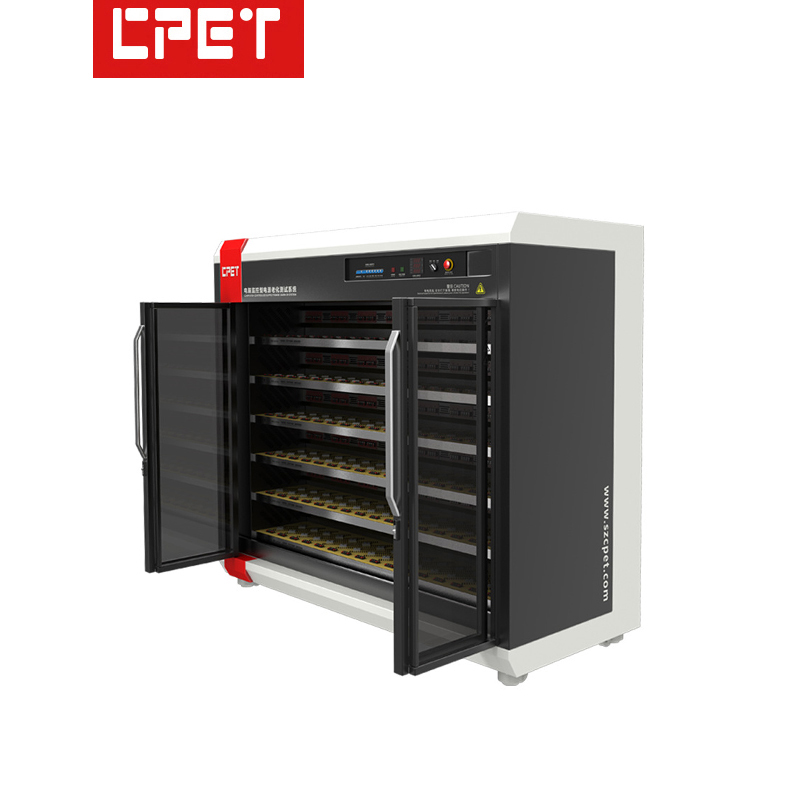

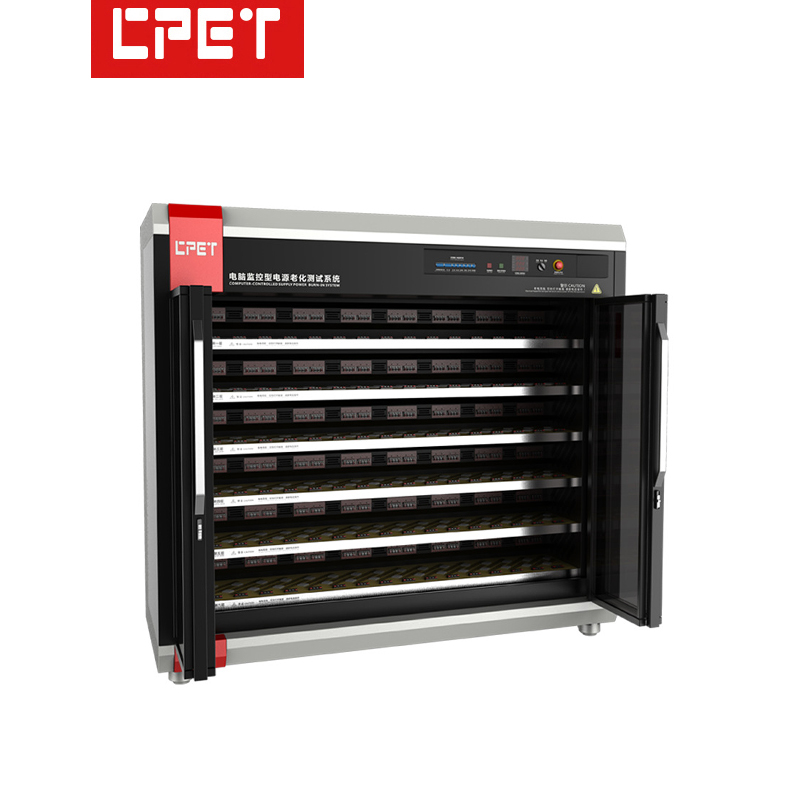

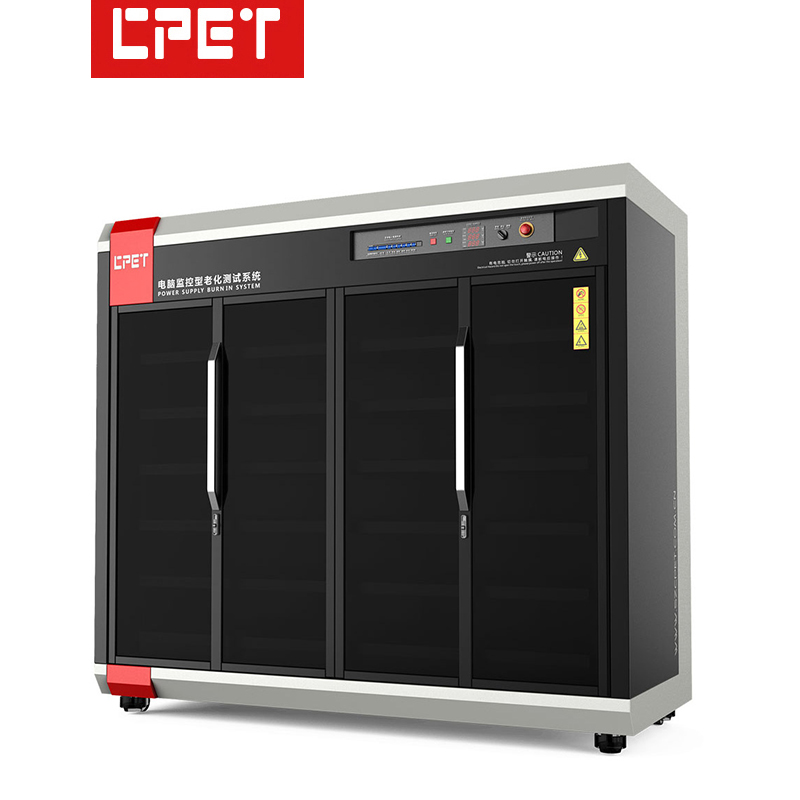

New Energy Vehicles Energy Saving Feedback MPPT Controller Aging Test Machine

New Energy Vehicles Energy Saving Feedback MPPT Controller Aging Test Machine

10100.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Operating Voltage 220V AC Volt (V)
Interface Type RS232/RS485, USB
Application Electrical and electronic product aging and workshop life testing
Response Time 1 sec Years
Display Type LCD Digital Display
Test Range Multi-function (Aging, Endurance, Performance)
Specimen Size Customizable Foot (ft)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

New Energy Vehicles Energy Saving Feedback MPPT Controller Aging Test Machine Price And Quantity

Minimum Order Quantity 1 Piece
Price 10100.0 USD ($)/Piece

New Energy Vehicles Energy Saving Feedback MPPT Controller Aging Test Machine Product Specifications

Interface Type RS232/RS485, USB
Operating Voltage 220V AC Volt (V)
Application Electrical and electronic product aging and workshop life testing
Response Time 1 sec Years
Machine Weight 400 Kilograms (kg)
Display Type LCD Digital Display
Specimen Size Customizable Foot (ft)
Test Range Multi-function (Aging, Endurance, Performance)
Usage Product and component aging/endurance testing
Measuring Range no Kelvin (K)
Frequency 50/60 Hz Kilohertz ( KHZ )
Automation Grade Semi-automatic/Automatic
Max Height 2000 mm
Test Stroke 0-500 mm adjustable
Control Mode Touch screen PLC control
Hardness Industrial steel frame
Equipment Type Aging Shelf Test Equipment
Accuracy 0.5% F.S. %
Mounting Type Floor Standing
Gas Pressure 0.4-0.7 MPa kpa
Resolution 0.1 (varies by parameter)
Capacity Max 15 kg/specimen Ltr
Humidity 20%-90% RH
Port Size 1/4 inch
Features Multi-functional, Modular, Adjustable shelves, Safety protection
Test Speed 0-100 cycles/min adjustable
Number of Specimens 2-10 (Adjustable)
Power Supply AC 220V 50Hz
Temperature Room temperature to 80 C Celsius (oC)
Test Width 600 mm Millimeter (mm)

New Energy Vehicles Energy Saving Feedback MPPT Controller Aging Test Machine Trade Information

Supply Ability 192 to 240 Piece Per Month
Delivery Time 20-25 Days

Product Description

Discover our celebrated Multi-Function Aging Shelf Workshop Test Equipment, engineered for superlative performance in aging and endurance testing of electrical and electronic products. Personalise your testing process with adjustable shelves, variable test speeds, and customizable specimen sizes. Built from commanding powder-coated steel, it offers lowest price guarantees and is ending soon. Safety is assured with overload, short-circuit, and over-temperature protection. The PLC touch screen, modular framework, and plug-and-play data export provide operational excellence, while heavy-duty casters add mobility for indoor, dust-free workshops. Order now for unmatched reliability!

Burn-in cabinet structure and Burn-in quantity planning	Trolley size (mm)	L2050W1250H2050mm (size of a single Burn-in cabinet)
	Number of trolley layers	4 layers, product area depth 400mm, (6 Burn-in positions per layer)
	Trolley height	280mm
	Trolley structure material	cold rolled sheet
	Load area cooling method	Top turbine exhaust fan top row type (easy to control the ambient temperature)
	Layer insulation and anti-static method	Epoxy insulation board with heat dissipation holes on the surface
	Overall burn-in room structure	Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine
Introduction to energy recovery module configuration, power of the tested power supply and Burn-in quant	Energy recovery module control method	RS485 communication mode, upper computer uses RS232 communication mode
	Energy recovery module isolation mode	Electronic load module channel adopts photoelectric isolation (communication and power supply isolation)
	Install the skill module model	CP8601, 24PCS in one cabinet
	Number of installed DC source modules	Each burn-in cabinet is configured with six 10-120V /200A /20KW DC power modules
	Energy recovery module carrying capacity	Load capacity: 2.5-60Vdc/0.5-240A/3.2kW (voltage, current adjustable
	rgy recovery module design architecture	No relay, long life design scheme (independent intellectual property rights)
	Number of burn-in products in the entire cabinet	One cabinet burn-in MTTP modules of less than 3.2KW 24PCS
Introduction to the main functions of the system	Applicable to energy storage power,current converter, inverter, regurgitator,transverter, medical power supply and so on
	Free configuration of self-developed special monitoring software for power Burn-in, with independent intellectual property rights and no legal risks
	Use programmable electronic load module to monitor output terminal voltage, current and power parameters
	Dedicated monitoring software for Burn-in enjoys free nal upgrade service, powerful expansion function, saving repeated investment in equipment
	Burn-in parameters, time setting, ON/OFF sequence editing (test of the product being tested on and off), support for automatic voltage switching, load conversion and other functions can be programmed (Burn-in parameters can be automatically switched in a fixed time period)
	The function of automatically turning off the power at the end of the Burn-in of the tested power supply is convenient for unattended
	The computer automatically displays the quality of the tested power supply product, and multiple windows in the window are convenient for centralized management, which saves operators and improves production efficiency
	The computer can store the Burn-in data report of the tested power supply, the process parameters of the tested power supply are easy to trace
	RS232 to RS485 adopts photoelectric isolation converter to improve communication reliability and prevent lightning damage to equipment
	Each computer can monitor 18 devices at the same time, (each serial port can connect to 63 slaves, and each computer supports up to 18 serial ports)
	The power Burn-in monitoring software has a built-in help file, which is convenient for solving operation questions immediately

Competitive Advantages & Application Excellence

Crafted from premium powder-coated steel, this equipment stands out with commanding safety features and superlative adjustability. Heavy-duty lockable wheels enable mobility, while height and spacing adjustable shelves offer versatility for product and component aging or endurance testing. Ideal for use in indoor, dust-free workshops, its broad operation range and robust modular design meet the rigorous demands of electronic and electrical product testing facilities seeking competitive edge and reliability.

Sample, Payment & Export Service Highlights

Experience our premium service from the initial order processing to careful packing and fast dispatch. Sample units are available for hands-on evaluation. We offer flexible payment terms to suit international buyers. With celebrated reliability and efficiency, our equipment serves major export markets across Asia, Europe, and the Americas. Each order is managed to ensure swift delivery and secure handling, demonstrating our ongoing commitment to global business excellence.

FAQs of Multi-Funcation Aging Shelf Workshop Test Equipment:

Q: How can I personalise the Multi-Function Aging Shelf Test Equipment for my specific products?

A: You can personalise the equipment with adjustable shelf height and spacing, customizable specimen sizes, and a modular design adaptable to different testing requirements, accommodating specimens ranging from 2 to 10 pieces.

Q: What safety features are included in this aging shelf test equipment?

A: The test equipment comes with a comprehensive safety suite, including overload, short-circuit, and over-temperature protection to safeguard both operators and specimens during testing.

Q: Where is the ideal site of application for this equipment?

A: It is best suited for indoor, dust-free workshops or laboratories, providing an optimal environment for accurate and reliable aging, endurance, and performance testing of electrical and electronic products.

Q: What is the process for data export and monitoring?

A: Test results can be exported conveniently to a PC via RS232/RS485 or USB interfaces, while measurements such as voltage, current, temperature, and resistance are displayed in real time on a digital LCD screen.

Q: When can I expect to receive my order and sample?

A: Sample units are available for evaluation. After order confirmation and payment, prompt packing and dispatch procedures ensure your equipment is delivered swiftly to your specified location.

Q: What is the expected benefit of using this equipment for my business?

A: The equipment streamlines aging and endurance testing processes, enhances testing accuracy with 0.5% F.S. precision, and boosts efficiency with semi-automatic or automatic operation modesproviding a robust, long service life solution for your product quality assurance needs.
