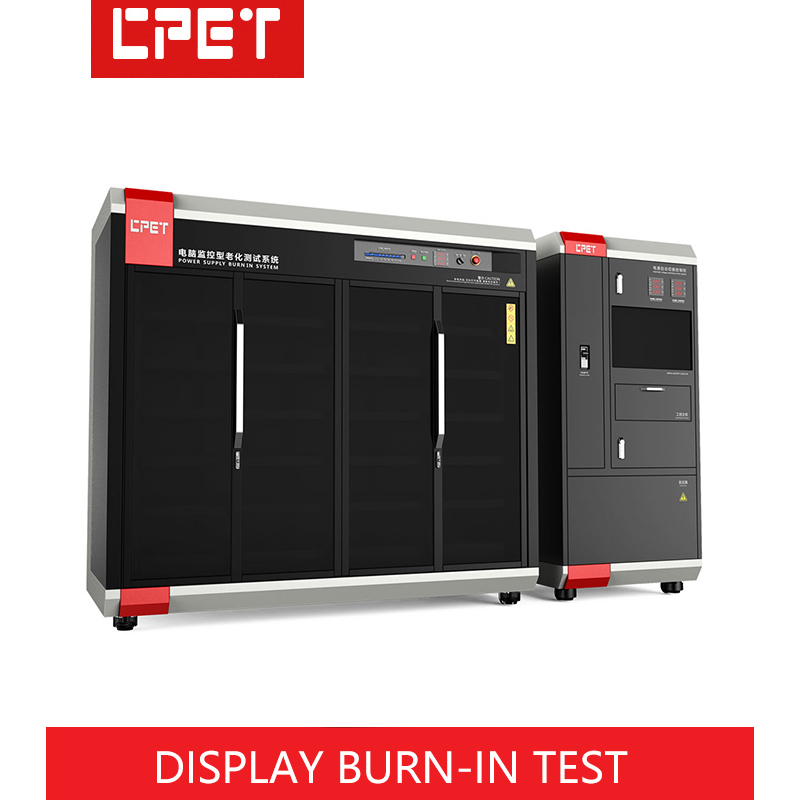

TV Power Supply Aging Test Chamber for TV motherboard

TV Power Supply Aging Test Chamber for TV motherboard

Name: TV Power Supply Aging Test Chamber for TV motherboard
Brand: Shenzhen CPET Electronics Co., Ltd.
Price: 5400.0 USD
Availability: InStock

5400.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Hardness Industrial grade steel structure
Automation Grade Automatic
Equipment Type Aging Test Chamber
Features Automatic temperature and humidity control, Overload protection, Fault alarm, Data recording
Response Time 2 seconds
Accuracy 1%
Max Height 1800 mm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

TV Power Supply Aging Test Chamber for TV motherboard Price And Quantity

Minimum Order Quantity 1 Unit
Price 5400.0 USD ($)/Unit

TV Power Supply Aging Test Chamber for TV motherboard Product Specifications

Application Aging and life testing of TV power supplies and motherboards
Operating Voltage 220V AC
Usage Routine inspection, batch aging test
Resolution 0.01 A / 0.01 V
Test Range 1-24 channels
Mounting Type Floor-standing
Humidity 20%-90% RH (adjustable)
Port Size Customizable according to test specimen
Power Supply AC 220V 10%, 50Hz
Display Type Digital/LED display
Measuring Range 0-24 channels (customizable)
Temperature Room temp to 60C (programmable)
Gas Pressure 0.4-0.6 MPa
Number of Specimens 24 pieces (maximum)
Test Stroke 0-100 mm (adjustable)
Capacity Maximum load 40 kg
Interface Type RS232/USB
Frequency 50 Hz
Machine Weight 320 kg
Specimen Size Up to 450 x 400 mm
Test Width 1000 mm
Test Speed Adjustable, 1-60 cycles/min
Accuracy 1%
Response Time 2 seconds
Max Height 1800 mm
Automation Grade Automatic
Equipment Type Aging Test Chamber
Hardness Industrial grade steel structure
Control Mode Microcomputer automatic control
Features Automatic temperature and humidity control, Overload protection, Fault alarm, Data recording

TV Power Supply Aging Test Chamber for TV motherboard Trade Information

Supply Ability 192-240 Unit Per Month
Delivery Time 20-25 Days

Product Description

Amidst our wide range of products, we are also engaged in providing a wide range of rugged designed TV Power Supply Aging Test Chamber. In order to ensure its quality, our team of experts checks the entire array on different parameters. Furthermore, this TV Power Supply Aging Test Chamber is highly acknowledged for their high-utility features among our buyers. Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software.

Precision Test Chamber for TV Power and Main Boards

Built with industrial-grade materials, this chamber is designed to simulate rigorous operational conditions, ensuring reliable assessment of TV power supplies and motherboards. The adjustable environment, high test throughput, and advanced data handling features help manufacturers and exporters guarantee consistent product quality and longevity.

Advanced Automation and Safety in Testing

Equipped with a microcomputer automatic control system, automatic temperature and humidity management, and real-time digital display, this chamber streamlines the entire testing process. Over-temperature, over-current, leakage, and short-circuit protectionbacked by robust alarmsensure safe, unattended operation even during extended test cycles.

FAQs of TV Power Supply Aging Test Chamber for TV motherboard:

Q: How does the TV Power Supply Aging Test Chamber operate?

A: The chamber uses microcomputer automatic control to accurately manage temperature, humidity, and testing cycles. Specimens are loaded onto the racks, and test parameters such as temperature (room temp to 60C), humidity (20%-90% RH), and cycle speed (1-60 cycles/min) are set. The control panel allows operators to program tests, while data is automatically recorded and can be exported via USB for analysis.

Q: What applications are suitable for this aging test chamber?

A: It is designed specifically for aging and life cycle testing of TV power supplies and motherboards. Manufacturers can use it for routine product inspection or batch testing, ensuring the reliability and durability of components before market release.

Q: When should the data be exported from the chamber?

A: Data export is typically performed after each test cycle or batch is completed, allowing for thorough evaluation and record-keeping. Users can utilize the USB port for quick, secure data transfer to external storage or analysis systems.

Q: Where should this test chamber be installed?

A: The floor-standing design and robust structure make it ideal for installation in industrial labs, quality assurance departments, and factory testing areas. Its customizable port size and specimen capacity accommodate a wide range of setup requirements.

Q: What is the process for adjusting test parameters in the chamber?

A: Test parameters such as temperature, humidity, test cycles, and test width can be configured using the microcomputers digital control interface. Simply enter desired values, and the chamber automatically maintains setpoint precision thanks to its reliable sensors and feedback system.

Q: How is safety ensured during operation?

A: The chamber is equipped with over-temperature, over-current, leakage, and short-circuit protection. Integrated alarms alert operators to any abnormalities, and the sturdy enclosure constructed from SUS304 stainless steel and powder-coated plate enhances operational safety.

Q: What benefits does automatic temperature and humidity control provide?

A: Automatic control ensures consistent environmental conditions throughout testing, which improves the repeatability and accuracy of test results. This reduces operator workload, minimizes error, and helps meet stringent quality assurance standards.
