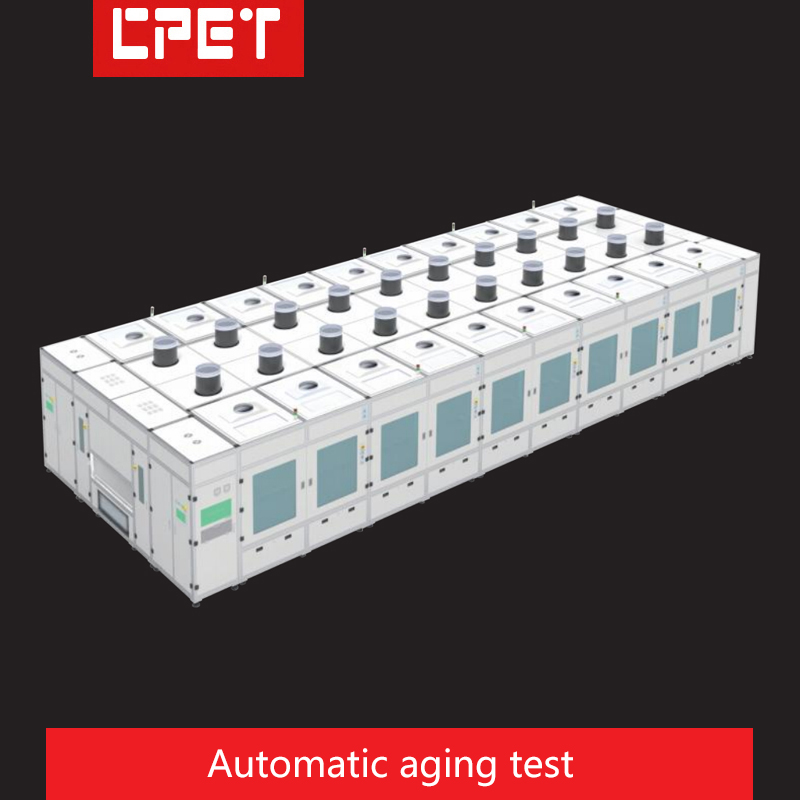

Automatic Aging Test Equipment For Photovoltaic Inverter Energy Storage Power Supply

Automatic Aging Test Equipment For Photovoltaic Inverter Energy Storage Power Supply

2850000.0 INR/Set

Get a Price/Quote

Product Details:

Operate Method Computer control
Display Type Computer display screen
Interface Type customization
Product Type Aging test equipment
Material cold-reduced sheet
Test Range Photovoltaic inverter energy storage power supply
Machine Weight 1300 Kilograms (kg)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Automatic Aging Test Equipment For Photovoltaic Inverter Energy Storage Power Supply Price And Quantity

Minimum Order Quantity 1 Set
Price 2850000.0 INR/Set

Automatic Aging Test Equipment For Photovoltaic Inverter Energy Storage Power Supply Product Specifications

Machine Weight 1300 Kilograms (kg)
Operate Method Computer control
Display Type Computer display screen
Product Type Aging test equipment
Material cold-reduced sheet
Interface Type customization
Control Mode Computer monitoring
Test Range Photovoltaic inverter energy storage power supply

Automatic Aging Test Equipment For Photovoltaic Inverter Energy Storage Power Supply Trade Information

FOB Port 2850000
Payment Terms Telegraphic Transfer (T/T)
Supply Ability 2 Set Per Month
Delivery Time 2 Months
Sample Policy Contact us for information regarding our sample policy
Packaging Details Packed in wooden cases
Certifications CE ROHS

Product Description

Automatic Aging Test Equipment For Photovoltaic Inverter Energy Storage Power Supply

Scope of application

LED power supply, new energy OBC, PC power supply, server power supply, TV power

supply, photovoltaic inverter, high-power industrial power supply, etc

Outstanding functions

1. Fully automatic operation

2. More stable and reliable

3. Automatic high pressure test, ATE test, burn-in test

4. Unit design, specific configurationcan according to customer needs

5. Save labor, reduce labor intensity

6. Integration testing no need to turn over, improve degree of automation

7. Multiple test station, save space, real-time monitoring, has the functions such as

abnormal alarm stop

8. Burn-in test interface independent, for your follow-up maintenance,keep quality and

save cost

9. Load recovery efficiency up to 80%6, reduce load electricity heat, reduce the electrical waste

10. Powerful versatility, DC products with or without wires can be applied, and the operation

is simple and convenient

11. Use a large number of robots or transfer machines to replace labor, with high efficiency,

increasing your company's production efficiency by up to 50%

Performance parameters

Basic information Model	Equipment Model	CPET-ME200006T
	Units Per Hour(UPH)	120PCS/h
	Product Power	30KW/CH
	Equipment Size	L=12400mm,W=4900mm,H=3000mm
	Equipment Weight	Around 13000kg
Related Information of Burn-in line	Burn-in Room Capacity	60PCS
	Burn-in Time	2H
	Burn-in Ply Number	3 floors
	Transfer mode	Modular splicing manipulator handling
Burn-in Line Temperature Control system	Cooling Circulation Mode	Forced air cooling:fan+frequency convertwe+air duct
	Control Scope and Precision	The temperature control scope:adjustable from room temperature to 60C.The control precision is 5C
	Temperature Rise Rate	Able to rise to more than 45C in 20 minutes
Burn-in Line Electronic Control system	Product and Load Properties	Optional
	Load Properties	Optional
	Burn-in Voltage Input	Support up to 6 voltages
	Protection and Alarm	Control power supply independently and added with protection and equpment including overheating and overload protection,earth leakage circuit breaker,waring light,emergency switch,etc
	Hardware Demand Description	Independent computer host, display burn-instate, monitor output should be voltage, current,power and soon
	Software Monitor Demand	Compile different Burn-in programs according to different products, realize voltage switching, impact, switching cycle, current setting, temperature setting and other parameters
	Burn-in Management Demand	The OK and NG judgment monitoring interface can directly understand that the data can be saved according to the required data format (TXT, EXCEL), which is convenient for query and download
Test Station Related Information	Test Station Types	Install the product + electrified initial test + high voltage + ATE + Burn-in + ATE + take the product, automatic test Burn-in system, Unit combination system
	Test Mode	Optional
	Test Data Processing	Optional
	Test Instruments	Optional
	Connection Mode	Optional
Burn-in & Test Jig	Jig Size	W1000mmD1000mmH70
	Interface Mode	AC: Anderson terminal; DC: Anderson terminal
	The Commmon Usage	Shared by burn-in and test
	Weight	35KG
Main Electric Control System	Protection Equipment	Possessing independent and segmentation main switches.Having independent ground protection and electricity leakage protection devices
	Power Demands	According to the actual planning
	Air source requirements	0.5-0.8MPa

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Burn-in Test Equipment' category

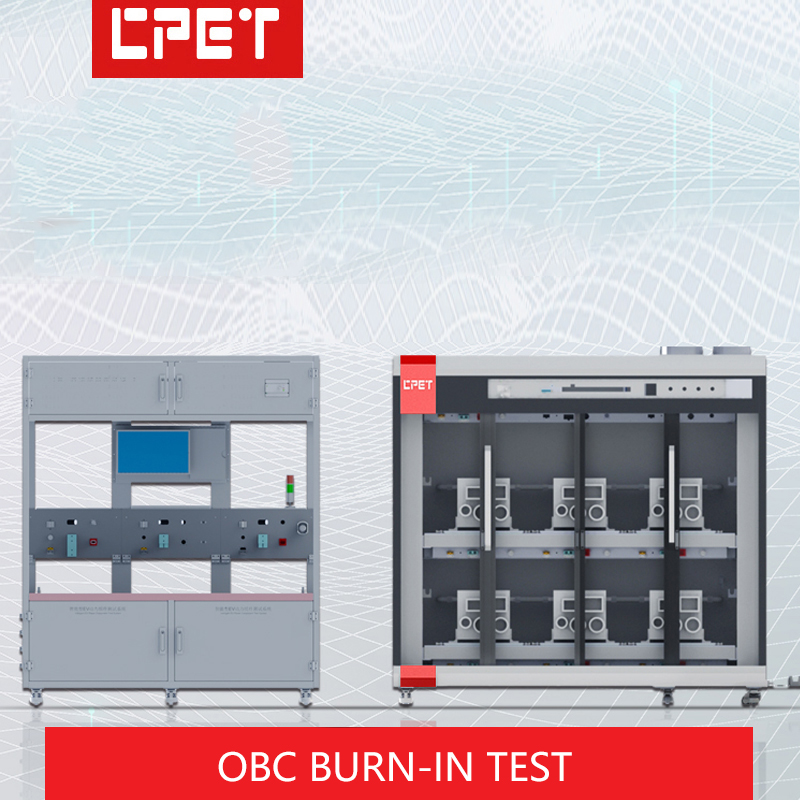

Customization New Energy Vehicle Power Supply Assembly OBC Aging Test Equipment Price : 368000.0 INR/Set Minimum Order Quantity : 1 Material : coldreduced sheet Product Type : Aging test equipment Interface Type : customization Display Type : Computer display screen Machine Weight : 300 Kilograms (kg) Color : black
