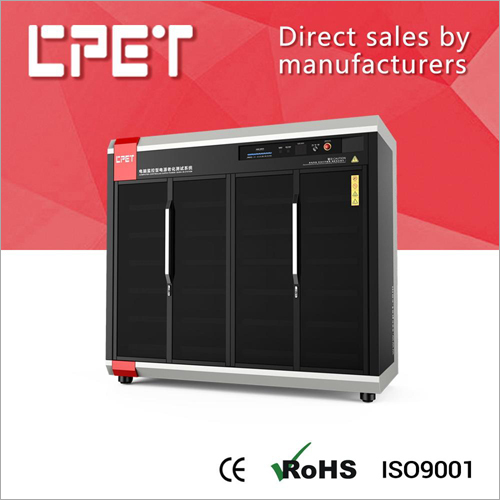

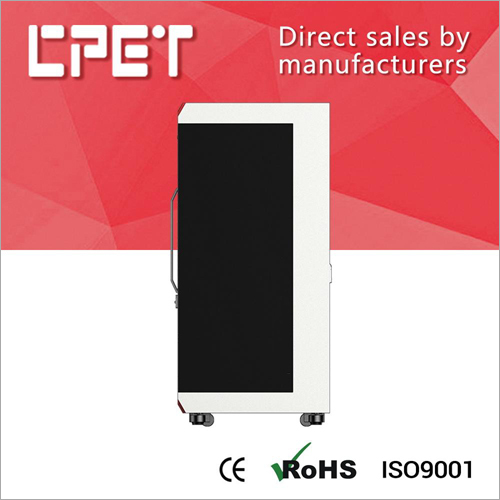

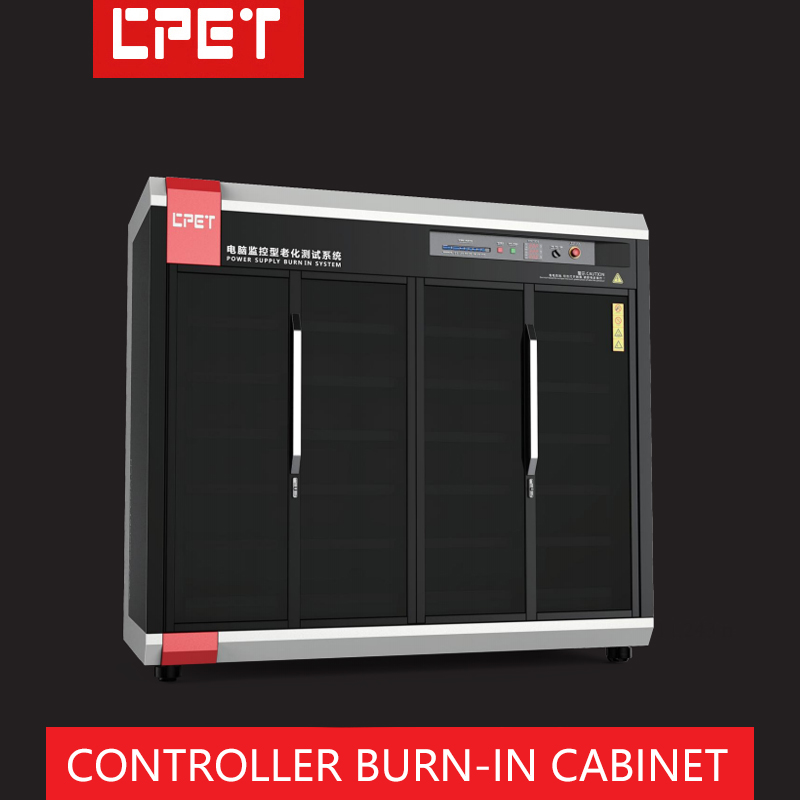

Automotive Motor Controller Aging Test Chamber Enery Saving Conversion Test Machine

Automotive Motor Controller Aging Test Chamber Enery Saving Conversion Test Machine

8500.0 USD ($)/Millimeter

Get a Price/Quote

Product Details:

Voltage -1
Color black
Operate Method Computer control
Automation Grade fully automatic
Application controller
Capacity 30 Pcs/hr
Display Type computer
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Automotive Motor Controller Aging Test Chamber Enery Saving Conversion Test Machine Price And Quantity

Minimum Order Quantity 1 Millimeter
Price 8500.0 USD ($)/Millimeter
Price Range 8500.00 - 5900.00 USD ($)/Millimeter

Automotive Motor Controller Aging Test Chamber Enery Saving Conversion Test Machine Product Specifications

Material cold-reduced sheet
Product Type Aging test equipment
Usage controller
Voltage -1
Capacity 30 Pcs/hr
Display Type computer
Power 1
Color black
Operate Method Computer control
Automation Grade fully automatic
Application controller
Machine Weight 400 Kilograms (kg)
Weight 400 Kilograms (kg)
Classification Aging cabinet
Max Height 1900mm
Power Supply 220v/380v
Mounting Type Landing installation
Interface Type customization
Temperature 60 Celsius (oC)
Test Range controller
Control Mode Computer monitoring
Features automatic testing

Automotive Motor Controller Aging Test Chamber Enery Saving Conversion Test Machine Trade Information

FOB Port 60000
Payment Terms Telegraphic Transfer (T/T)
Supply Ability 30 Millimeter Per Month
Delivery Time 45 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Packed in wooden cases
Main Domestic Market South India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, All India, Central India, West India, North India
Certifications CE,ROHS

Product Description

automotive motor controller aging test chamber

Scope of application

This equipment is mainly used for high temperature burn-in test of BMS board of vehicle motor controller

Performance parameters

Burn-in cabinet structure and Burn-in quantity planning	Trolley size (mm)	L2050W1250H2050mm (size of a single Burn-in cabinet)
	Number of trolley layers	6 layers, product area depth 400mm, (8 Burn-in positions per layer)
	Trolley height	175mm
	Trolley structure material	cold rolled sheet
	Load area cooling method	Top turbine exhaust fan top row type (easy to control the ambient temperature)
	Layer insulation and anti-static method	Epoxy insulation board with heat dissipation holes on the surface

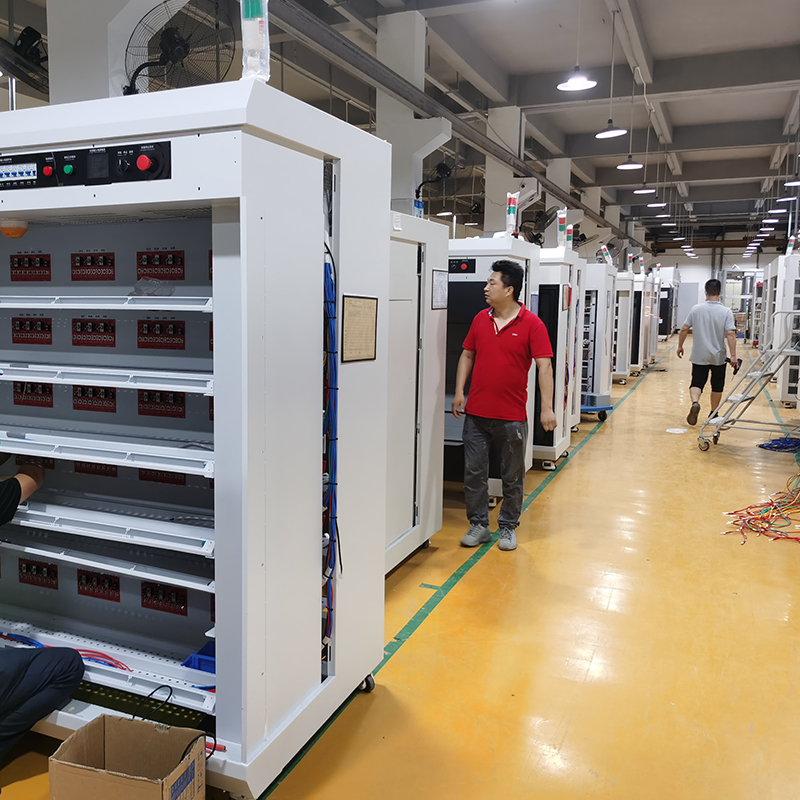

	Overall burn-in room structure	Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine

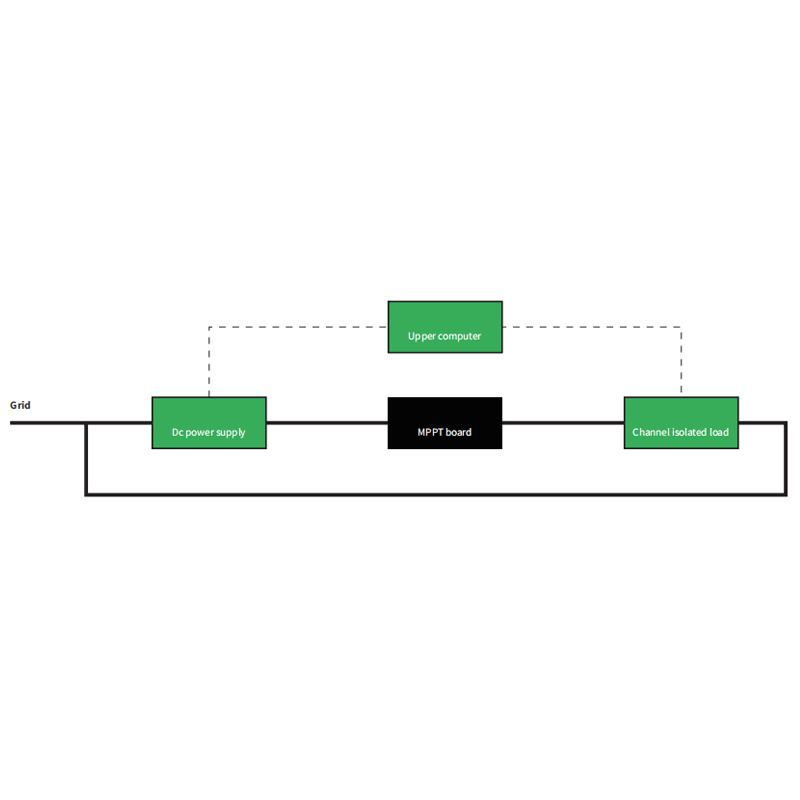

Introduction to energy recovery module configuration, power of the tested power supply and Burn-in quant	Energy recovery module control method	RS485 communication mode, upper computer uses RS232 communication mode
	Install the skill module model	CP8601, 8PCS in a single cabinet
	Dc power supply capability	10-100Vdc/1-30A/3kW (adjustable voltage and current)
	Energy recovery module isolation mode	Electronic load module channel adopts photoelectric isolation (communication and power supply isolation)
	Energy recovery module carrying capacity	Load capacity: 2.5-60Vdc/0.5-240A/3.2kW (voltage, current adjustable
	Number of installed DC source modules	Each burn-n cabinet is configured with 24 DC power modules
	rgy recovery module design architecture	No relay, long life design scheme (independent intellectual property rights)
	Number of burn-in products in the entire cabinet	48 BMS controllers less than 3.2KW are aged in one cabinet
electric control and temperature control device for power Burn-in cabinet	Wiring	Customer specified interface; input port is pin socket
	Panel function keys	Input AC voltage display, start switch, emergency stop switch
	Trolley power distribution and control mode	380V three-phase five-wire distribution; Computer monitoring and automatic electric control
	Trolley power distribution	A single burn-in cabinet is 3000W*8/0.8523KW, and the measured power efficiency is calculated as 85%
	Way to control	The electric control includes manual/automatic switching, which is monitored by the computer in real time when burn-in. The electric control cabinet can extend the automatic switching function of AC voltage
	Safety protection	Equipment grounding protection, leakage switch protection, smoke alarm automatic power-off protection etc
