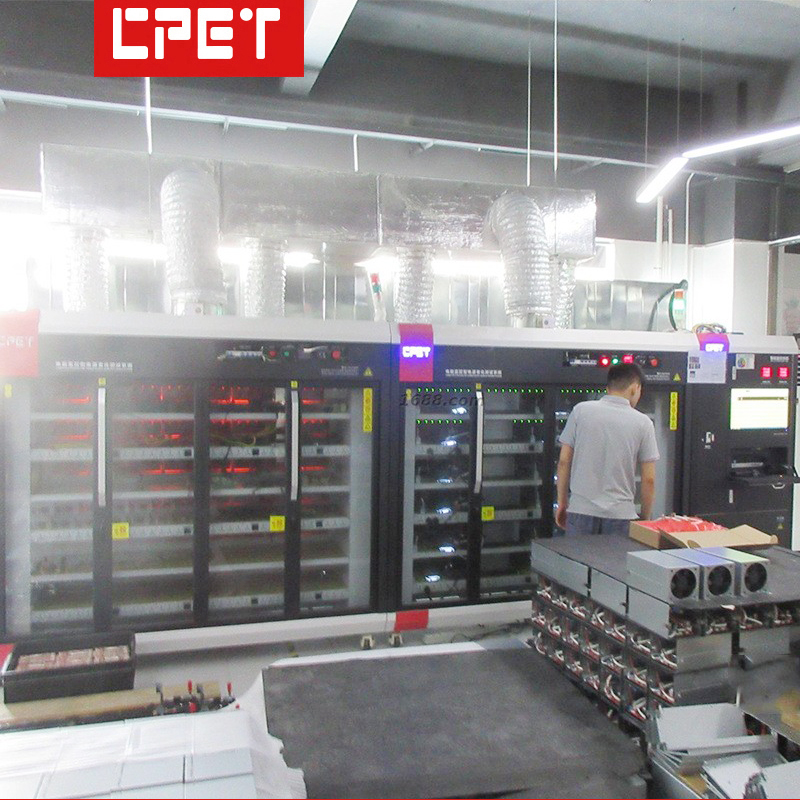

Energy Saving Burn in Testing System of Industrial Power Supply

Energy Saving Burn in Testing System of Industrial Power Supply

Get a Price/Quote

Product Details:

Temperature 10-40C
Humidity 20-90% RH
Resolution 0.01
Automation Grade Automatic
Max Height 1800 mm
Specimen Size Customizable clamps (max 400x400 mm)
Port Size Standard 1/2 inch
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Energy Saving Burn in Testing System of Industrial Power Supply Price And Quantity

Minimum Order Quantity 1 , , Millimeter

Energy Saving Burn in Testing System of Industrial Power Supply Product Specifications

Usage Continuous Load Test
Automation Grade Automatic
Capacity up to 20 kW
Resolution 0.01
Humidity 20-90% RH
Temperature 10-40C
Equipment Type Energy Saving Burn in Testing System
Response Time 1s
Application Industrial Power Supply Burn-in and Reliability Testing
Port Size Standard 1/2 inch
Specimen Size Customizable clamps (max 400x400 mm)
Max Height 1800 mm
Accuracy 0.5%
Test Range 0-500V, 0-60A
Power Supply AC 220V 10%, 50Hz
Features Automatic Overload Protection, Data Logging, High Efficiency, Energy Saving
Frequency 50 Hz
Measuring Range Current, Voltage, Power, and Temperature
Gas Pressure 0.5-0.7 MPa
Test Speed Adjustable up to 100 cycles/min
Test Width 600 mm
Hardness Industrial Grade
Mounting Type Floor Standing
Operating Voltage 220V AC
Display Type Digital LCD Display
Control Mode PLC/Touch Screen
Interface Type RS485/USB
Machine Weight 200 kg
Test Stroke 300 mm
Number of Specimens Up to 8 simultaneously

Energy Saving Burn in Testing System of Industrial Power Supply Trade Information

Supply Ability 192-240 , , Millimeter Per Month
Delivery Time 20-25 Days

Product Description

We are the highly coveted and widely acclaimed name engaged in offering of a defect-free assortment of Energy Saving Burn-in Testing System of Industrial Power Supply. This is made available in a variety of specifications that can also be customized as per the specific requirements of our buyers. Offered Energy Saving Burn-in Testing System of Industrial Power Supply is manufactured by our expert personnel using the best quality components and advanced technology in our sophisticated manufacturing unit in order to meet the industry set parameters.

Advanced Burn-In Testing Modes

Select from constant current, constant voltage, or programmable cycle modes to simulate real-world conditions and enhance power supply reliability. PLC or touch screen control ensures test precision, programmable routines, and seamless integration with your industrial processes.

Robust Safety and Remote Monitoring

The system features comprehensive protection, including over-temperature, over-current, and over-voltage safeguards. Operators benefit from a real-time alarm and telemetry system, enabling safe, unattended, and continuous testing sessions with peace of mind.

Effortless Data Management and Export

Record and analyze your test results easily. Test data, covering current, voltage, power, and temperature, can be logged automatically and exported directly to Excel or CSV via USB, streamlining reporting and compliance with industrial standards.

Customizable and User-Friendly Design

With support for various specimen sizes, customizable clamps, and adjustable speed up to 100 cycles/min, this floor-standing unit fits seamlessly into busy industrial labs. The intuitive digital LCD display and PC software make operations straightforward and flexible.

FAQs of Energy Saving Burn in Testing System of Industrial Power Supply:

Q: How does the forced air cooling system enhance the burn-in testing process?

A: Forced air cooling ensures efficient heat dissipation during continuous or high-speed burn-in tests. This maintains optimal operating conditions inside the enclosure, prolongs equipment life, and improves the accuracy and safety of testing for industrial power supplies.

Q: What is the procedure for setting up a burn-in test using this system?

A: Start by clamping up to eight specimens using the adjustable holders, select your test modeconstant current, voltage, or a programmable cyclethen input desired parameters via the PLC or touch screen interface. Activate the test, monitor progress through the digital display, and export results as needed.

Q: Where can I access real-time monitoring and alarms for test progress?

A: Real-time telemetry and monitoring with alarm notifications are available via the digital LCD display and customizable PC software. Remote monitoring allows users to oversee test status, receive alarms, and track all vital metrics even from a distance.

Q: What safety features are integrated into the burn-in testing system?

A: The system incorporates automatic over-temperature, over-current, and over-voltage protection mechanisms. These features actively safeguard your samples and equipment, promptly cutting off power or signaling alarms to prevent damage or hazards during testing.

Q: When should I export test data, and how is it managed?

A: You may export test results directly after each cycle or at the conclusion of a test session. Data is logged in real-time and can be exported easily via USB in Excel or CSV format, allowing convenient post-test analysis and documentation.

Q: What are the primary benefits of using this energy saving burn-in test system?

A: This system increases reliability of industrial power supplies, automates the testing process for efficiency, reduces energy consumption, supports extensive data management, and ensures safety through responsive protectionsproviding a comprehensive, modern solution for rigorous industrial environments.
