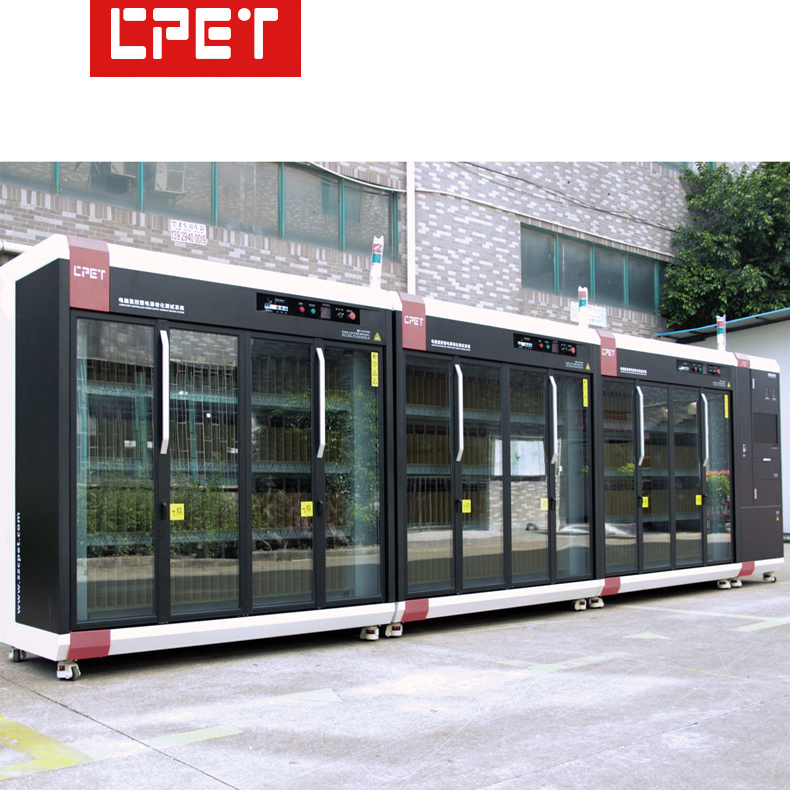

Custom Design TV Power Supply Burn in Test Chamber

Custom Design TV Power Supply Burn in Test Chamber

Name: Custom Design TV Power Supply Burn in Test Chamber
Brand: Shenzhen CPET Electronics Co., Ltd.
Price: 7500.0 USD
Availability: InStock

7500.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Material Cold rolled plate
Product Type Aging test cabinet
Interface Type Customized
Weight 400 Kilograms (kg)
Operate Method Computer control
Classification Aging test cabinet
Features Aging test
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Custom Design TV Power Supply Burn in Test Chamber Price And Quantity

Price 7500.0 USD ($)/Unit
Minimum Order Quantity 1 Unit

Custom Design TV Power Supply Burn in Test Chamber Product Specifications

Product Type Aging test cabinet
Machine Weight 400 Kilograms (kg)
Material Cold rolled plate
Control Mode Computer monitoring
Weight 400 Kilograms (kg)
Operate Method Computer control
Classification Aging test cabinet
Features Aging test
Interface Type Customized

Custom Design TV Power Supply Burn in Test Chamber Trade Information

FOB Port 7500
Payment Terms Telegraphic Transfer (T/T)
Supply Ability 30 Unit Per Month
Delivery Time 30 Days
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details Wooden box packaging
Certifications CE,ROHS

Product Description

Application Scope

Suitable for the burn-in testing of TV Board/Display power supply

excellent function

1. Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software.

2. Be of list load mode and dynamic load mode.

3. Be of editable switch sequence and load conversion function.

4. Cooperate with monitoring software of power burn-in, for application.

5. Be of five kinds of load modes such as CC, CV, CR, CP and LED.

6. Support parallel connection of channels under any load modes and meet power extension of products.

7. Support power burn-in from low voltage to high voltage and from low current to large current.

8. Be of built-in over-temperature and smoke-alarming automatic protection device.

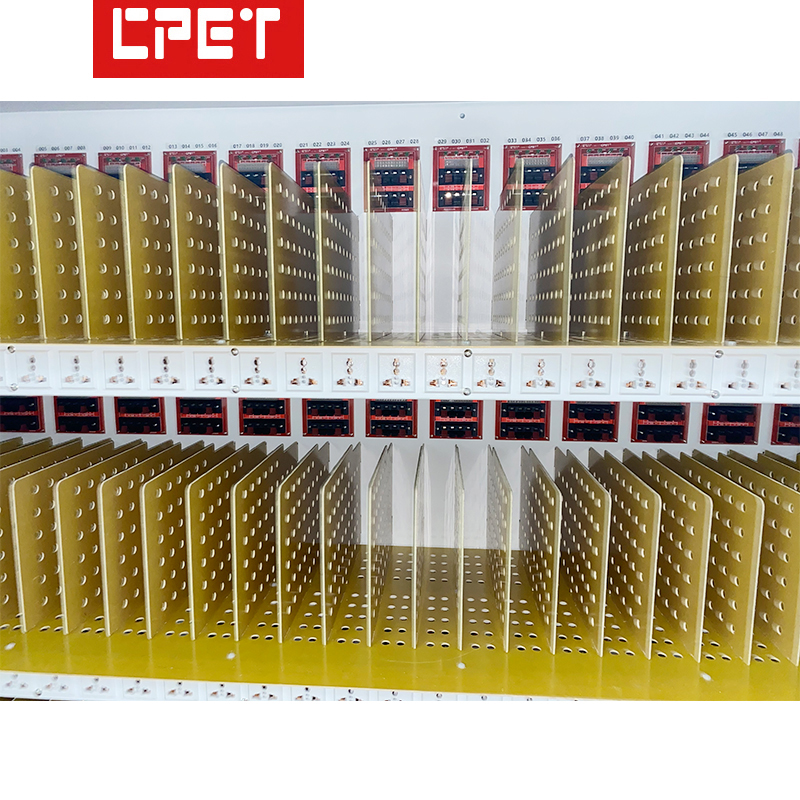

9. Interface of multiple DC adapter plates can meet the demands for different output interface products.

10. Be of optional multiple laminate structures at products zone and meet the requirements for more convenient operation of

different products.

11. Be of AC parameters measurement module and testing power input characteristics (optional).

12. Be of automatic voltage switching function (optional).

13. Be of temperature monitoring function at products zone (optional).

14. Be of PWM dimming function (optional).

15. 2 ways extension logic signal output (optional).

16. The model of E-load model can be selected.

17. Efficiency of energy saving conversion over 85%.

Performance parameters

Model	CP-3018	CP-3019
Power of single channel	125W/CH 150W/CH 200W/CH	100W/CH
Quantity of load channels	60-120CH	60-120CH
Scope of load voltage	2-450V	2-450V
Scope of load current	0.5-10A/CH	0.5-10A/CH
Load precision	1%+0.1%FS
Load Model	Energy Saving	Energy consumption
Load Mode	CC+CV+CR+CP+LED Mode
Number for plies of product zone	4
Height for plies of product zone(mm)	260
Width of products zone(mm)	300
Temperature control of products zone	Temperature control type of products zone: normal temperature-60
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
External dimension (LWH)	20508801900/custom design
