LED Power Supply Aging Test Machine

Get a Price/Quote

Product Details:

Measuring Range 0-300V, 0-20A
Port Size Standard 1/4 inch
Accuracy 7%
Features Automatic timer, alarm system, multi-channel operation, programmable cycles
Humidity 20-85% RH
Test Range 0-100% Aging capacity
Display Type Digital LCD Display
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

LED Power Supply Aging Test Machine Price And Quantity

Minimum Order Quantity 1 , , Millimeter

LED Power Supply Aging Test Machine Product Specifications

Usage Lab, Industrial
Control Mode Programmable LCD Touchscreen
Specimen Size Suitable for standard LED power supplies
Application LED Power Supply aging, burn-in and performance testing
Interface Type RS232 / USB
Automation Grade Semi-automatic
Response Time <2 sec
Test Stroke 250 mm
Max Height 1300 mm
Equipment Type LED Power Supply Aging Test Machine
Operating Voltage AC220V 0V, 50/60Hz
Number of Specimens Up to 12
Frequency 50/60 Hz
Gas Pressure 0.4-0.8 MPa
Power Supply AC 220V0V, 50/60Hz
Temperature Room Temp ~ 606C (adjustable)
Capacity Max load 12 sets per cycle
Resolution 0.1V / 0.01A
Mounting Type Floor-standing
Test Width 500 mm
Features Automatic timer, alarm system, multi-channel operation, programmable cycles
Measuring Range 0-300V, 0-20A
Port Size Standard 1/4 inch
Accuracy 7%
Machine Weight 120 kg
Display Type Digital LCD Display
Humidity 20-85% RH
Test Range 0-100% Aging capacity
Test Speed 30 cycles/min (adjustable)

LED Power Supply Aging Test Machine Trade Information

Supply Ability 192-240 , , Millimeter Per Month
Delivery Time 20-25 Days

Product Description

We are the foremost name engaged in offering of supreme quality LED Power Supply Aging Test Machine. The offered power supply aging test machine is precisely engineered using supreme quality components and advanced technology under the supervision of our adroit professionals. In addition to this, our provided LED Power Supply Aging Test Machine is widely appreciated by our clients owing to its robust construction, optimum performance and less maintenance. This test machine support parallel connection of channels under any load modes and meet power extension of products.

Advanced Testing and Data Features

Equipped with real-time monitoring, programmable cycle control, and automatic alarms, this aging test machine ensures accurate measurement of voltage and current across 12 LED power supplies simultaneously. USB data logging and RS232 interface enable easy data storage and analysis.

Robust Construction and Enhanced Safety

The test chamber is made from durable powder-coated steel and aluminum profiles. Built-in overheat and overload protection mechanisms, together with buzzer and light alarms, offer maximum safety for operators. Forced air cooling maintains optimal internal temperatures during extended tests.

Versatile and User-Friendly Operation

The machine accommodates various test scenarios, including continuous and intermittent cycling modes. The programmable LCD touchscreen interface supports both English and Chinese languages, making operation straightforward for diverse users. Adjustable test speed and environmental parameters further expand its application scope.

FAQs of LED Power Supply Aging Test Machine:

Q: How does the LED Power Supply Aging Test Machine ensure safety during operation?

A: Safety is ensured through integrated overheat and overload protection systems that automatically activate the buzzer and light alarms if unsafe conditions are detected. Additionally, forced air cooling maintains appropriate internal temperatures during long-term operation.

Q: What is the process for setting up and starting a test cycle?

A: Setup involves mounting up to 12 standard-size LED power supplies using the screw terminal and clamp system, selecting the desired test mode (continuous or intermittent), and configuring test parameters via the programmable LCD touchscreen. Once configured, the machine can be started, and all parameters are monitored in real time.

Q: When should I use the data logging feature?

A: Data logging via USB export is useful whenever test results need to be archived, analyzed, or reported. Real-time monitoring helps track performance during operation, and exporting the data allows for post-test quality assessments.

Q: Where can the machine be installed for optimal operation?

A: The floor-standing design is suitable for laboratory and industrial environments. Ensure the installation space accommodates its 1200 x 650 x 1300 mm dimensions and provides AC 220V 50/60Hz power supply, as well as proper ventilation for integrated cooling.

Q: What are the benefits of the programmable cycles and automatic alarm system?

A: Programmable cycles allow for customized test sequences that match specific aging and burn-in protocols, boosting repeatability and adaptability. The automatic alarm system ensures immediate response to any abnormal conditions, safeguarding both the equipment and specimens.

Q: How does the machine ensure accurate measurement during tests?

A: With a digital LCD display, the machine measures voltage (0300V) and current (020A) with 0.1V/0.01A resolution and 7% accuracy, updating values in less than 2 seconds for precise, timely monitoring every test cycle.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Burn-in Test Equipment' category

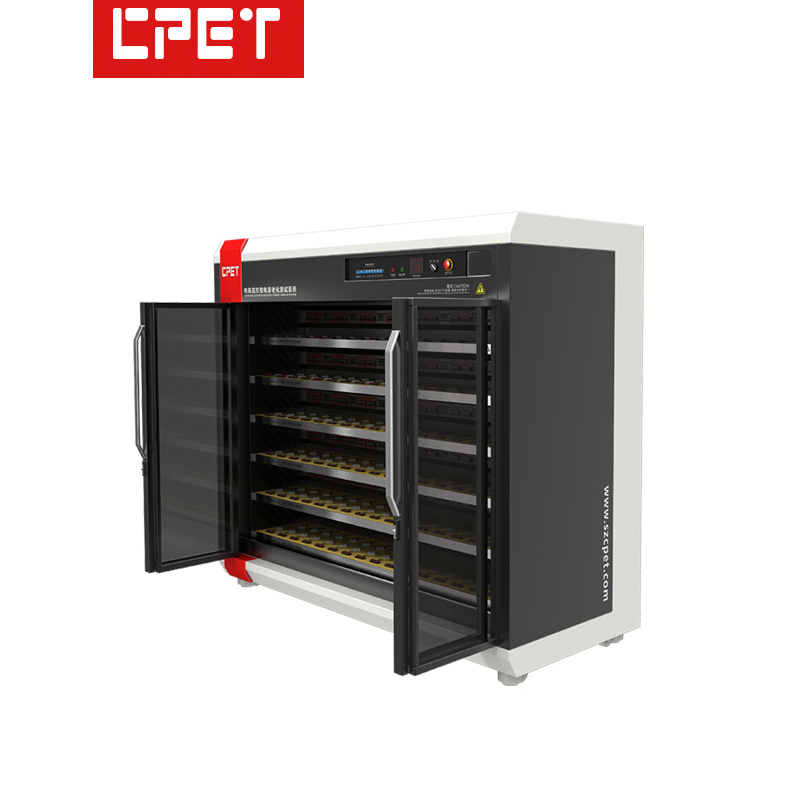

New Energy Vehicles Energy Saving Feedback MPPT Controller Aging Test Machine Price : 10100.0 USD ($)/Piece Minimum Order Quantity : 1 Machine Weight : 400 Kilograms (kg) Control Mode : Touch screen PLC control Test Width : 600 mm Millimeter (mm) Display Type : LCD Digital Display Interface Type : RS232/RS485, USB Measuring Range : no Kelvin (K) Port Size : 1/4 inch Accuracy : 0.5% F.S. % Features : Multifunctional, Modular, Adjustable shelves, Safety protection Humidity : 20%90% RH Test Range : Multifunction (Aging, Endurance, Performance) Test Speed : 0100 cycles/min adjustable Resolution : 0.1 (varies by parameter) Mounting Type : Floor Standing Capacity : Max 15 kg/specimen Ltr Number of Specimens : 210 (Adjustable) Operating Voltage : 220V AC Volt (V) Power Supply : AC 220V 50Hz Temperature : Room temperature to 80 C Celsius (oC) Frequency : 50/60 Hz Kilohertz ( KHZ ) Gas Pressure : 0.40.7 MPa kpa Specimen Size : Customizable Foot (ft) Application : Electrical and electronic product aging and workshop life testing Usage : Product and component aging/endurance testing Test Stroke : 0500 mm adjustable Max Height : 2000 mm Equipment Type : Aging Shelf Test Equipment Response Time : 1 sec Years Automation Grade : Semiautomatic/Automatic Hardness : Industrial steel frame
